Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: GEB
  • Model Number: 14505
  • Type: Li/SOCl2
  • Nominal Voltage: 3.6V
  • Size: AA
  • Nominal Capacity: 2400mAh
  • Product Name: 3.6v er14505h lithium battery AA size
  • Application: electronics devices
  • Weight: 25g
  • Model: 3.6v 14505-2400mah
  • Shape: AA size cyclindrical
  • Storage time: 10 years
  • Certificate: CE RoHs IEC
  • Capacity: 2400mAh
  • Payment: Paypal.TT.Escrow.Western Union
  • Battery type: Li/SOCl2 lithium battery

Packaging & Delivery

Packaging Details Poly Bag/pieces Package or Custom-made Package
Mode of Transport: By UPS/DHL/FEDEX/TNT( It takes 3-5 days to arrive); by air cargo( It takes about one week to arrive); by sea shipment ( It takes about one month to arrive).
Delivery Time Shipped in 7 days after payment

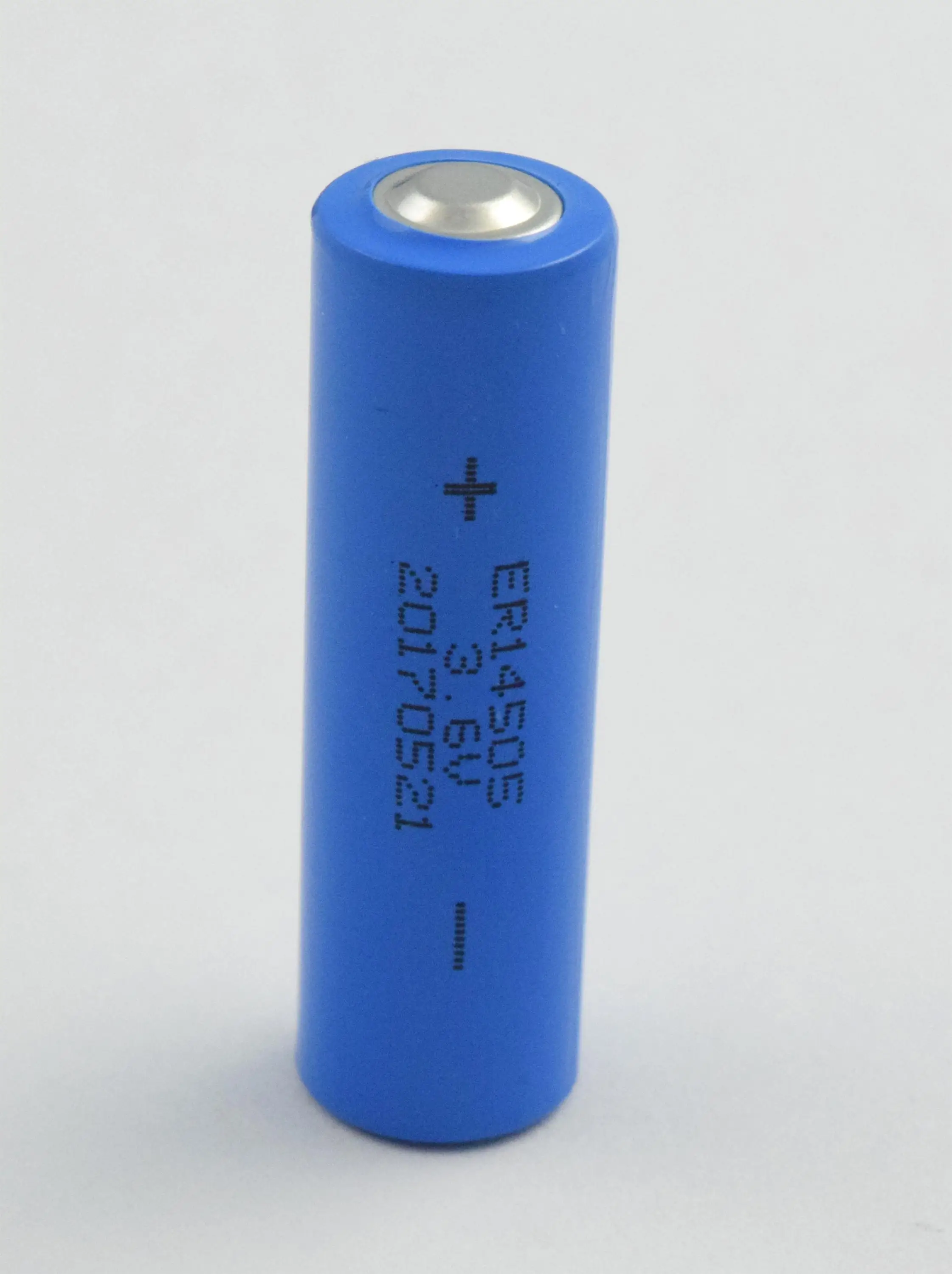

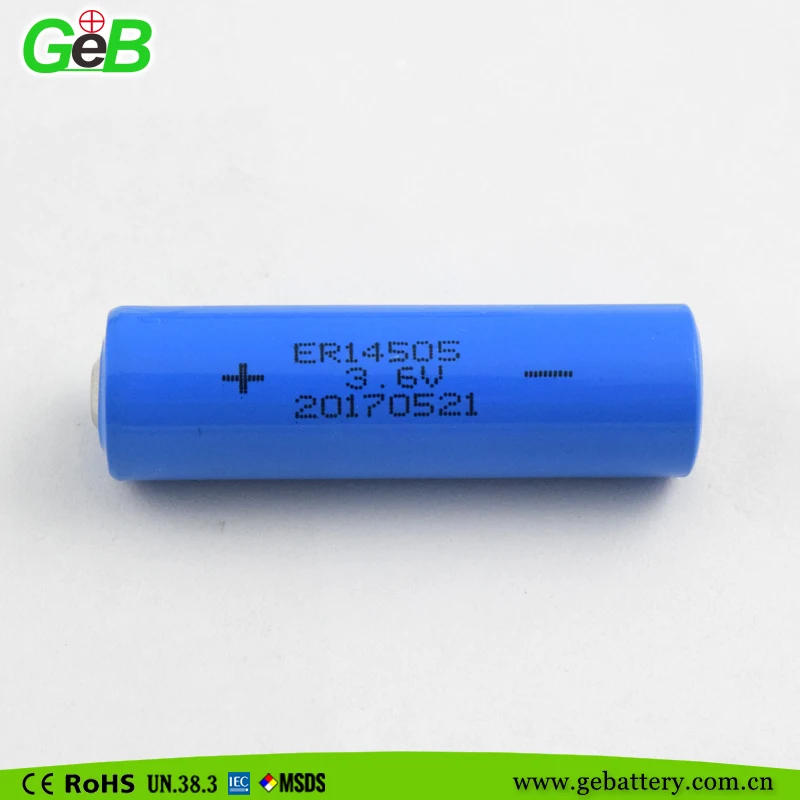

Cylindrical lithium battery 3.6v AA size 14505 2400mah for electronics devices



Items

Parameters

Battery Model

ER14505

Nominal Voltage

3.6V

Nominal Capacity

2400mAh

Standard Discharge Current

10mA

Max. Continuous Discharge Current

500mA

Max. Pulse Discharge Current

1000mA

Max. Dimension(Diameter*Height)

14*50.5mm

Discharge Cut-off Voltage

2.0V

Operating Temperature

-55~85℃

Self-discharge Rate

1%

Storage Condition

≤30℃& ≤75%RH



Features&Application


Key Features

1.High Energy Density

2.High single cell voltage

3.Stable operating voltage

4.Hermetic glass to metal sealing technical

5.Restricted for UL, UN38.3 and ROHS

6.Be easy to integrate into the device to use

7.Wide Operating temperature range from -55   ° C to +85°C.

8.Suited for long-term use with low current :long storage life (10 years) and low self-discharge (1 % or less

per year)

9.For operation at low current levels with long stands intermittent discharge with medium current level provided.

The average is not below the active current level.   er14505 lithium battery



Main Applications

(1)Utility meter (water, electricity, gas meter and AMR)

(2)Alarm or security equipment (smoke alarm system and detector)

(3)GPS system, GSM system

(4)Real-time clock, Car electronics

(5)Digital control machine

(6)Wireless and other military equipment

(7)Remote monitoring systems

(8)Signal lights and the post indicator

(9)back-up record power, Medical equipment

 (10)er14505 lithium battery, er14505m

Related Products



ProductionFlow Chart



Our Advantages



Instruction&Storage





Precautions and Safety Instructions of Lithium Battery Li-SOCI2

Please pay attention to followings in case of batteries will have leakage, heat etc.

  • Do not connect the positive and negative terminals of the battery.
  • Do not place battery into fire.
  • Do not weld directly battery long time.
  • Do not recharge battery.
  • Do not force-discharge.
  • Do not combine batteries in series or parallel by oneself.
  • Do not reverse the positive and negative terminals
  • Do not swallow.
  • Do not discard.   er14505 lithium battery
  • Stop immediately use it when serious heating or leakage.
  • Do not heat/use the battery beyond the permitted temperature range.
  • Before using our batteries, please read the manual Carefully or contact us.

Storage of Lithium Battery Li-SOCI2

  •  Stored battery in clean, dry and cool circumstances.
  •  Temperature≤30℃ and Humidity: ≤75% RH.
  • The storage temperature or humidity too high(low) will increase battery's self-discharge rate and reduce battery's storage life.
About US



General Electronics Battery Co., Ltd.

is a Sino-American jointventure company integrates R&D, manufacture and sales

Fortune Global 500 lithium battery customers special supplier

Over 1000 different sizes and capacities of batteries



We participate in a variety of trade fairs twice every year .On Electronics Show we  discuss with customers

about our products and help them solve questions face to face.We have established contacts with many potential buyers from other places as America,Australia, Belgium, Israel,Germany,the Netherlands, Canada etc.

FAQ

1.Q: What is nominal capacity?

A: Nominal capacity is measured at 23±2℃,discharge at standard constant current until 2.0V cut off.



 2.Q: What is nominal voltage ?

A: Micro-current discharge platform voltage reference values has 3.60V to do with battery chemistry system and has nothing to do with the battery model.



3.Q: What influences battery capacity?

A: Battery capacity depends on temperature ,discharge currents and cutoff voltage.



 4.Q: What is maximum continuous current?

A: At 23±2℃ the battery can discharge at least the max continuous discharge value which rated capacity 50% can permit.



 5.Q: What is maximum pulse discharge current?

A: At 23±2℃,battery discharge duration for 3 seconds and stand 27 seconds, it can discharge at least the max pulse discharge value which rated capacity 50% can permit.
